AI Vision Seed Cotton Foreign Fiber Remover JMZ-W1600V30-A type

Product Introduction

For the problem of foreign fibers in Xinjiang cotton, our Al vision seed cotton foreign fiber remover (1.6/3.6 meters are available) can achieve efficient and precise sorting, significantly improving the cleanliness of raw cotton

In the cotton processing industry, the removal of foreign fibers from seed cotton is crucial for enhancing quality. The traditional vision foreign fiber remover has high installation space requirements, which limits the equipment upgrade of the ginning factory.

The JMZ-W1600V30-A type AI vision seed cotton foreign fiber remover breaks through space limitations and can be installed behind the drying tower. It is specially designed for old ginning factories with limited space. Without modifying the production line, it can efficiently remove foreign fibers, reduce costs, and improve cotton quality and production efficiency.

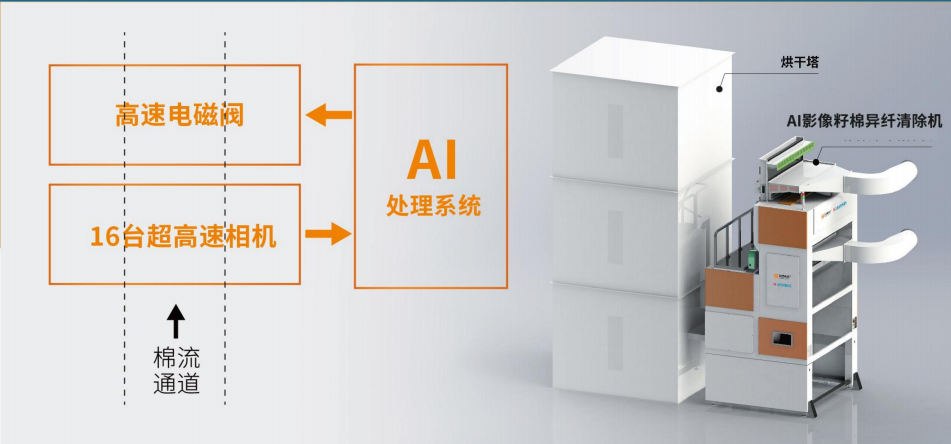

(As shown in the picture) after the previous process of deep opening, most of the foreign fibers in the seed cotton have been separated from the cotton fibers. At the drying tower, the shape of the foreign fibers is the most complete and it is the golden detection point. The Gemvision seed cotton foreign fiber remover is precisely designed for this key point and accurately deployed here.

When the cotton flows downward to upward at high speed through the optical imaging area, 16 pcs ultra-high-speed cameras are arranged in an array on both sides, capturing images in real time at a microsecond speed. The collected data is immediately transmitted to the AI processing system, which instantly completes the recognition and judgment through intelligent algorithms. Once the trace of foreign fibers is captured, the high-speed solenoid valve is immediately activated for precise elimination.

Compared with traditional equipment, this seed cotton foreign fiber remover innovatively adopts a double spray valve impact system, successfully solving the problem of missed targets in a single impact. When there are still foreign fibers passing through the first detection, the second detection line will seamlessly connect, which is equivalent to integrating the detection capabilities of two foreign fiber removers into one, significantly improving the impact rate and reliability of foreign fiber removal.

Its AI imaging recognition system also possesses a "Micro-level" detection capability. Even tiny foreign fibers as short as 10 mm and with an area of 0.2 cm² can be effectively detected.

This means that even if 90% of the normal fibers are covered, as long as there are some exposed parts, they will all be uncovered and exposed. This ensures that every fiber is accurately captured and completely removed. The comprehensive detection rate of exposed fibers is over 90%, laying a solid foundation for high-quality cotton production.
